【网带式固化机】适用于油漆耐高温产品加漏电开关SK-403-300D

产品订购

品牌：SunKun(三昆)

型号：SK-403-300D

订购：不限数量

价格：面议

产品介绍

注意：所有网带式固化机均可跟据客户要求非标订制，欢迎来电咨询！

---

1、UV灯功率:3.0kw*4支(UV汞灯)
2、UV灯总长:400mm、弧长:300mm
3、UV波段主波峰:365nm
4、UV灯累时器单独配置
5、强弱光强调节:75%、100%
6、钣金灯箱安装进口插片反射器
7、采用上排风系统
8、输送材料:不锈钢网带穿间距穿不锈钢轴
9、输送宽度:300mm
10、输送速度:0~5m/min(速度表)
11、入口高度:250mm
12、电源:380VAC50HZ(漏电开关)

1, UV lamp power: 3.0kw * 4 (UV mercury lamp)
2, the total length of the UV lamp: 400mm, arc length: 300mm
3, UV band main peak: 365nm
4, UV lamp chronograph is configured separately
5, strong and weak light intensity adjustment: 75%, 100%
6, sheet metal light box installation of imported insert reflector
7, using the upper exhaust system
8, conveying materials: stainless steel mesh belt wear spacing stainless steel shaft
9, conveying width: 300mm
10, conveying speed: 0~5m/min (speedometer)
11, the entrance height: 250mm
12, power: 380VAC50HZ (leakage switch)

---

1、聚光型设计,高聚光反光灯罩,瞬时干燥,速度特快;
2、灯箱设计的通风系统;
3、各灯皆可调节上下
4、输送带调速,输送速度平稳可调;
5、传动网带调整装置,跑偏;
6、灯管异常保护装置
三昆科技有限公司，专业UV光固机、工业烤箱、IR隧道炉、试验电炉、UV灯管、UV变压器等制造商。

1. Concentrating design, high concentration reflector, instant drying, fast speed;
2. Ventilation system designed for light boxes;
3, each lamp can be adjusted up and down
4. Conveyor belt speed regulation, conveying speed is stable and adjustable;
5, the transmission network belt adjustment device, deviation;
6, lamp abnormal protection device
Sankun Technology Co., Ltd., a professional manufacturer of UV curing machines, industrial ovens, IR tunnel furnaces, test furnaces, UV lamps, UV transformers, etc.

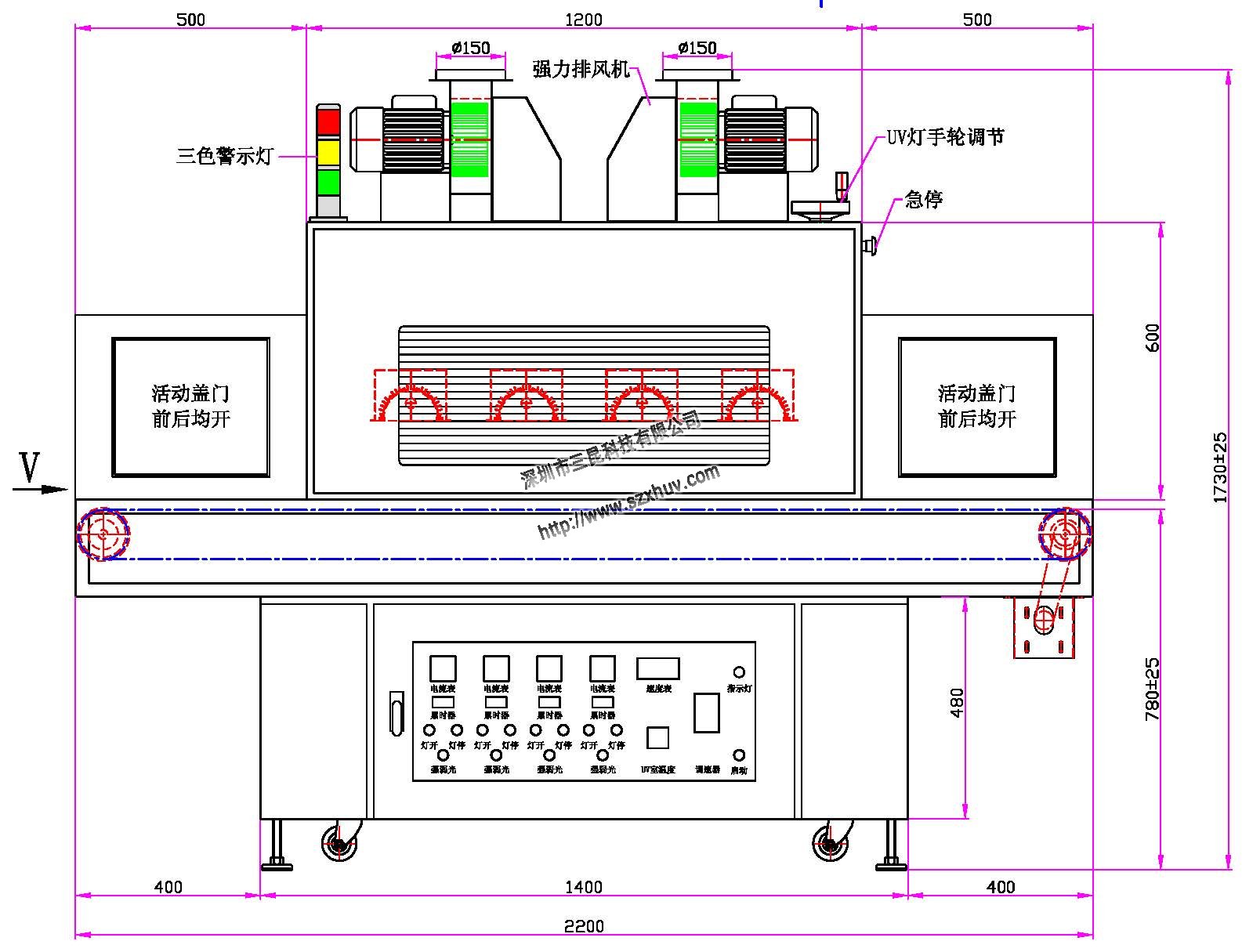

产品平面设计图

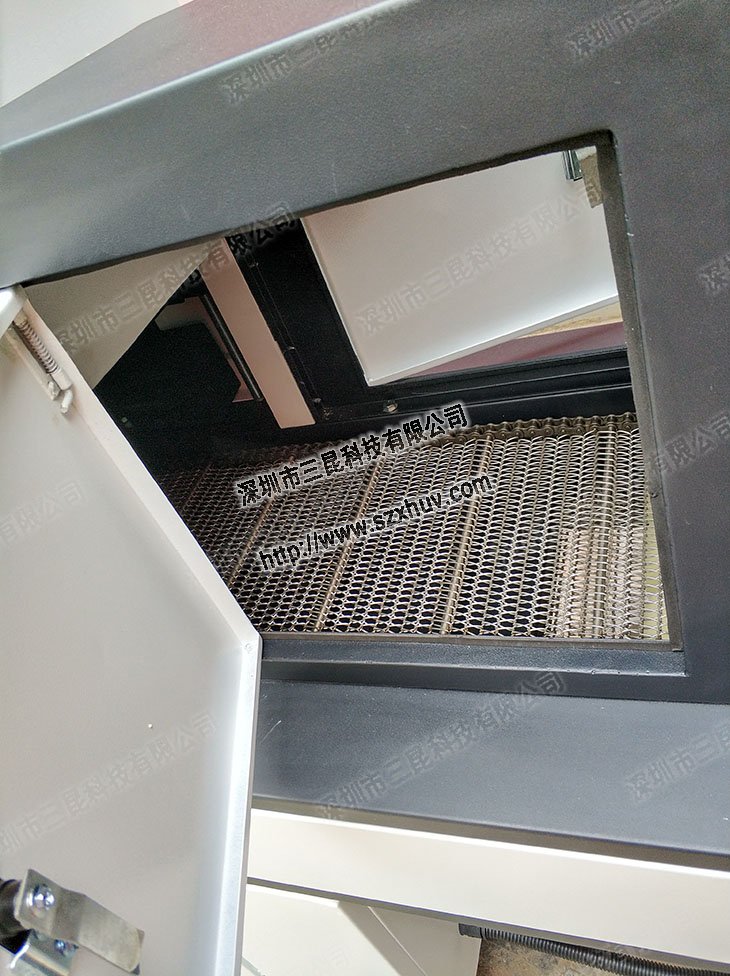

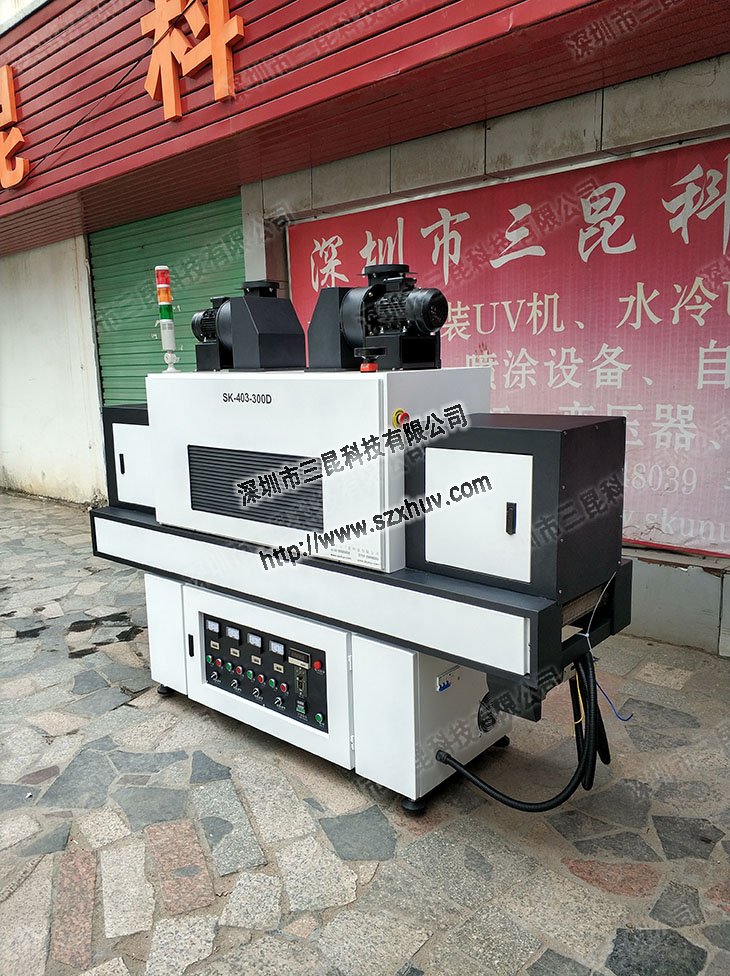

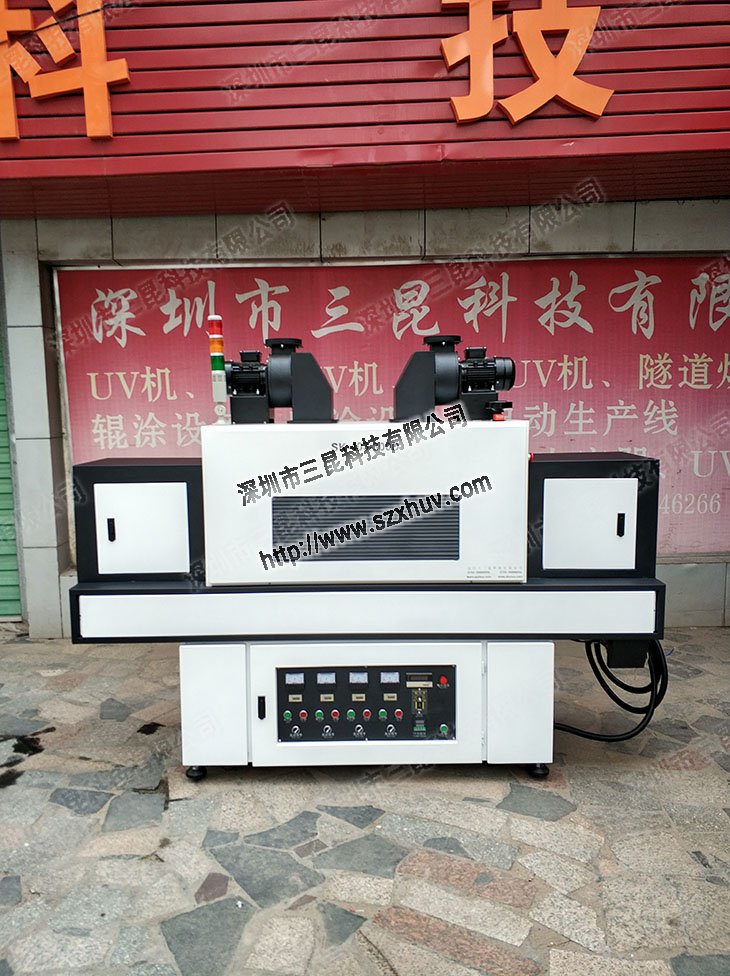

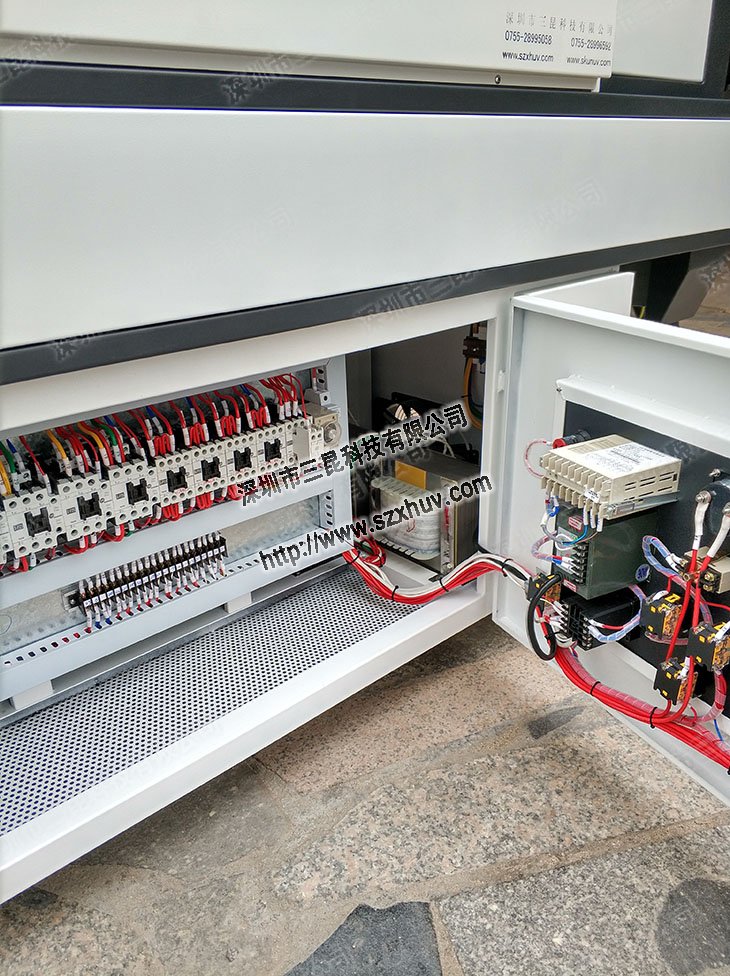

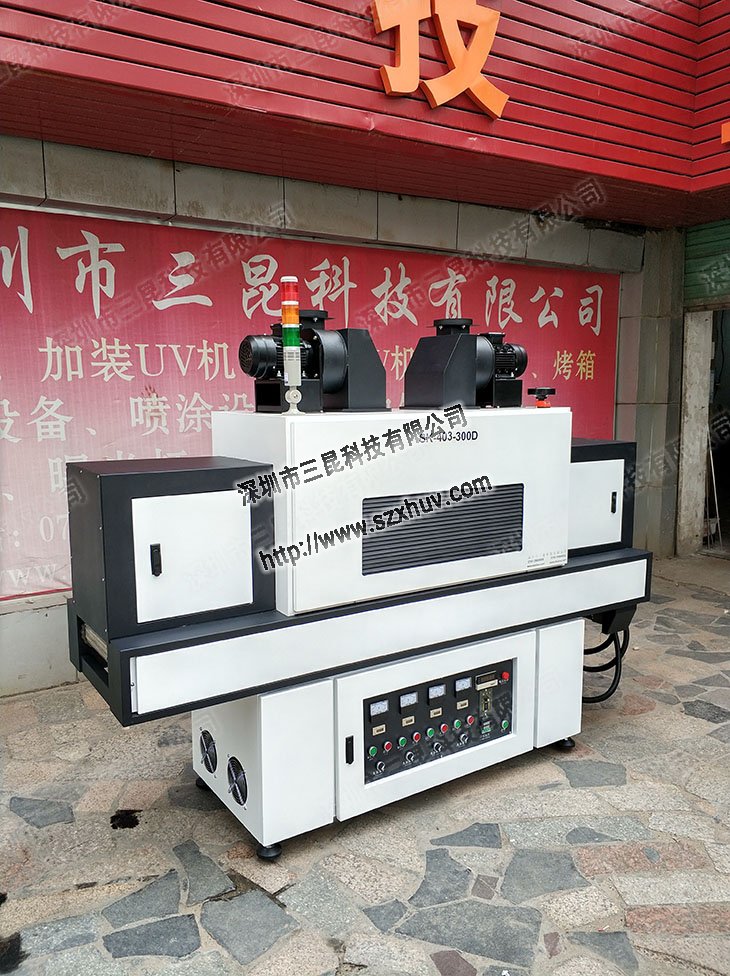

产品出货实拍图

产品维护与保养

产品使用注意事项
