【FPC/PCB低温UV机】线路板紫外线冷光机型SK-408-700SLM

产品订购

品牌：SunKun(三昆)

型号：SK-408-700SLM

订购：不限数量

价格：面议

产品介绍

注意：所有FPC/PCB低温UV机均可跟据客户要求非标订制，欢迎来电咨询！

---

1、UV灯功率：6.0kw*2支、8kw*2支（卤素灯)
2、UV灯总长：800mm、弧长：700mm
3、UV波段主波峰：365nm、385nm
4、触摸屏人机界面控制
5、强弱光强调节:20%~100%(无级调光）
6、钣金灯箱安装进口插片反射器
7、采用上、下排风系统
8、输送材料：聚四氟滚轮(耐紫外线)
9、输送宽度：700mm
10、输送速度：0~5m/min
11、入门高度：50mm
12、电源：380VAC 50HZ

Technical Parameters:
1, UV lamp power: 6.0kw * 2, 8kw * 2 (halogen)
2, the total length of the UV lamp: 800mm, arc length: 700mm
3, UV band main peak: 365nm, 385nm
4, touch screen man-machine interface control
5, strong and weak light intensity adjustment: 20% ~ 100% (stepless dimming)
6, sheet metal light box installation of imported insert reflector
7, using the upper and lower exhaust system
8, conveying materials: polytetrafluorometer roller (UV resistant)
9, conveying width: 700mm
10, conveying speed: 0~5m/min
11, entry height: 50mm
12, power: 380VAC 50HZ

---

主要用途：
1、用于工业FPC/PCB低温uv机线路板光固化的领域，紫外线用于工业光固化的领域大体可分为几大类：印刷业、塑胶行业、电子行业、灯具行业、汽车行业、工艺品行业、玻璃行业、数据线材端口UV加固，各种UV涂料、LED灯制造，钟表装配，固化电子元件等，该装置体积小，重量轻，制作精良，移动方便，适用于桌面安放。不仅可以适用于电子行业，还可以用于仪表行业等。等等。

The main purpose:
1. It is used in the field of industrial FPC/PCB low-temperature UV board circuit board curing. The field of ultraviolet light used in industrial light curing can be divided into several categories: printing, plastics, electronics, lighting, automotive, and crafts. Industry, glass industry, data wire port UV reinforcement, various UV coatings, LED lamp manufacturing, watch assembly, curing electronic components, etc., the device is small in size, light in weight, well-made, easy to move, suitable for desktop placement. Not only for the electronics industry, but also for the instrument industry. and many more.

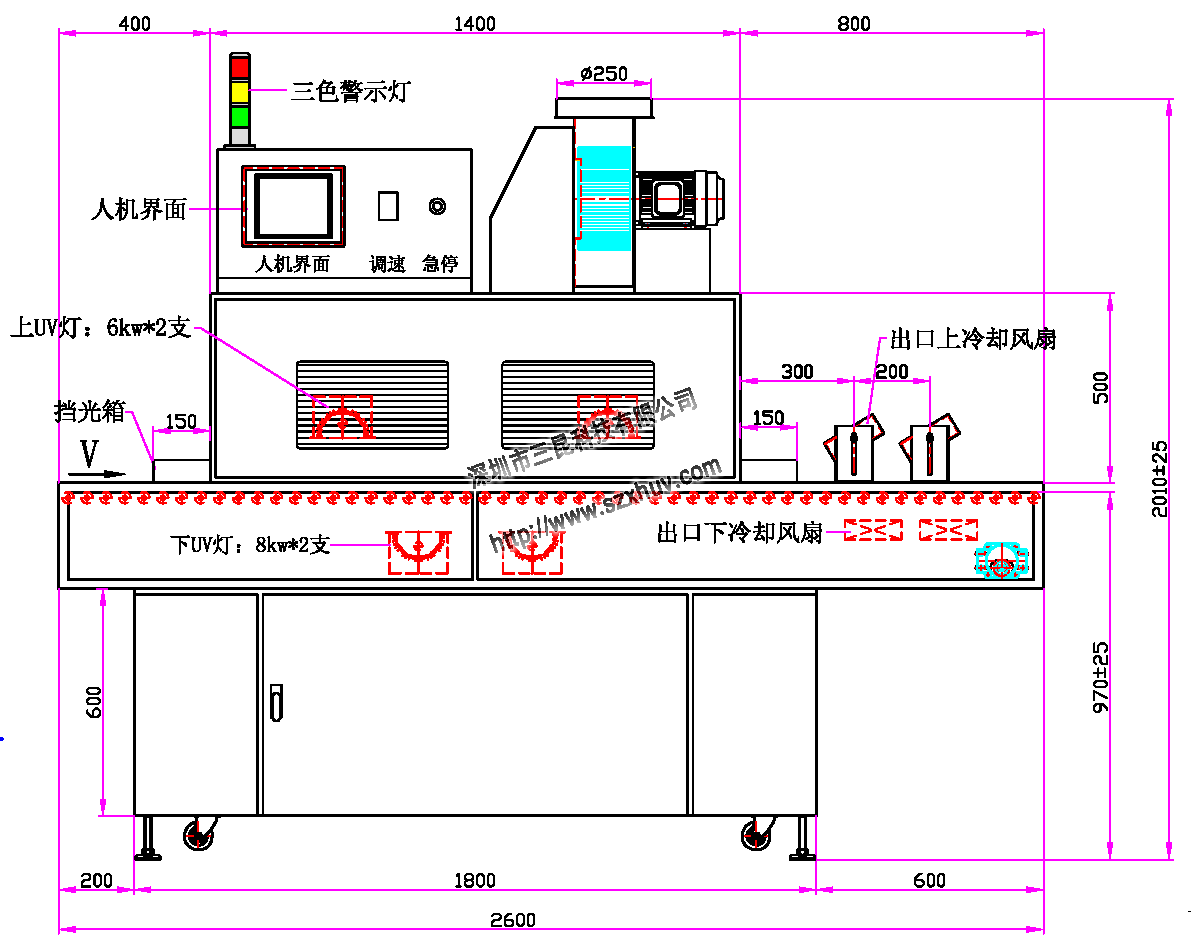

产品平面设计图

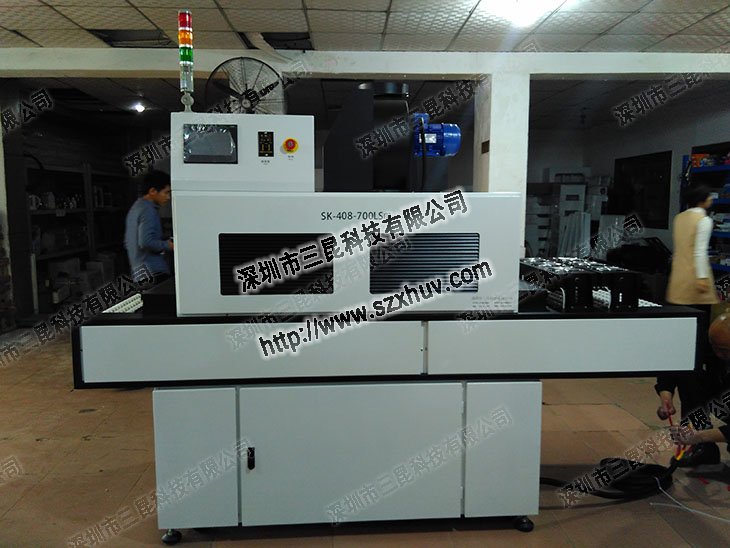

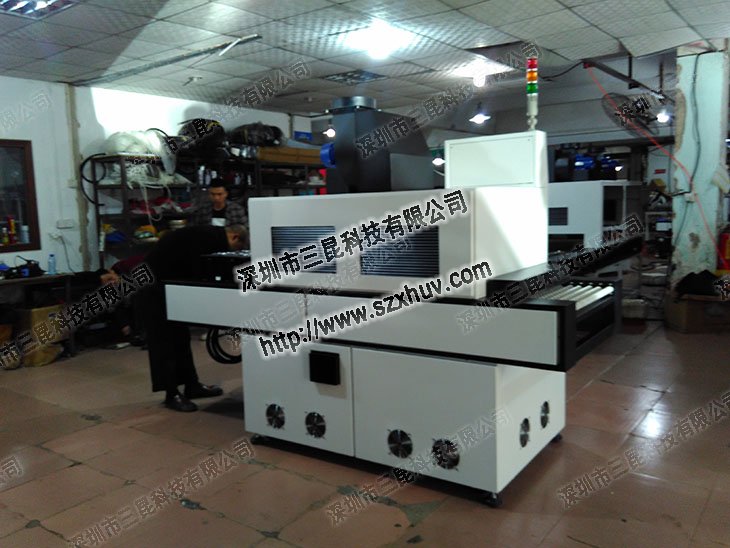

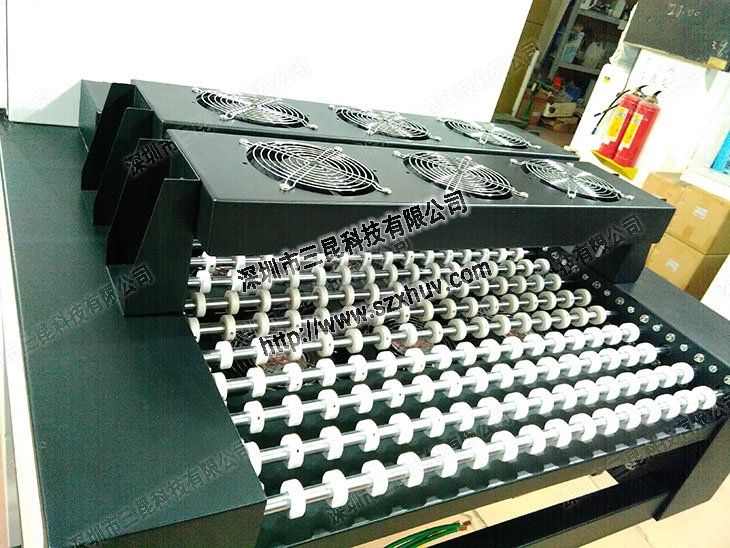

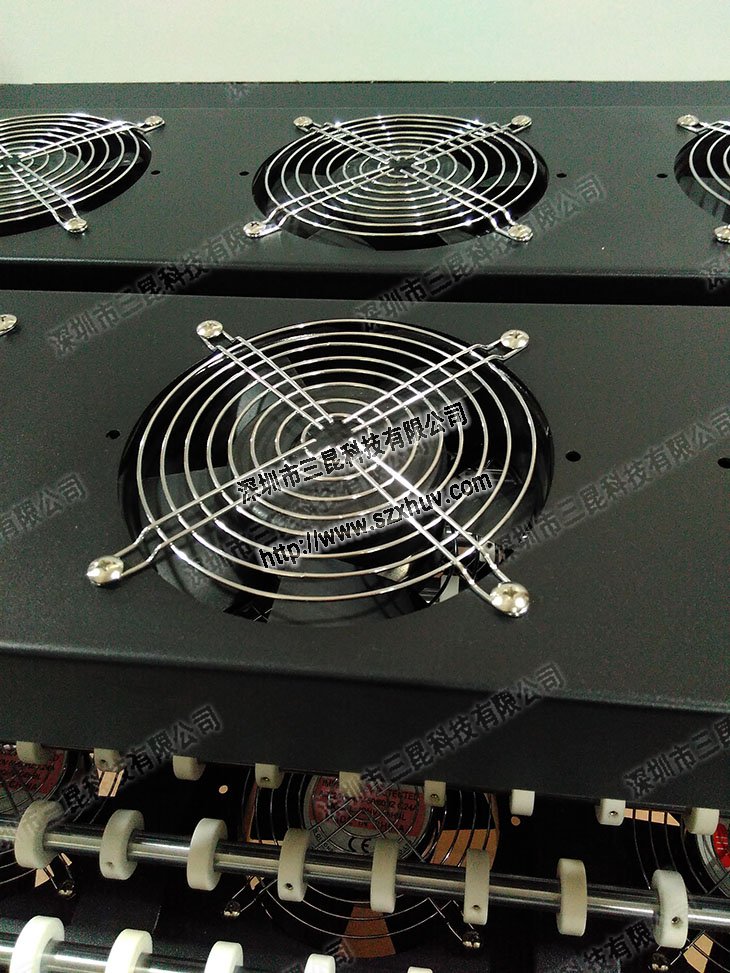

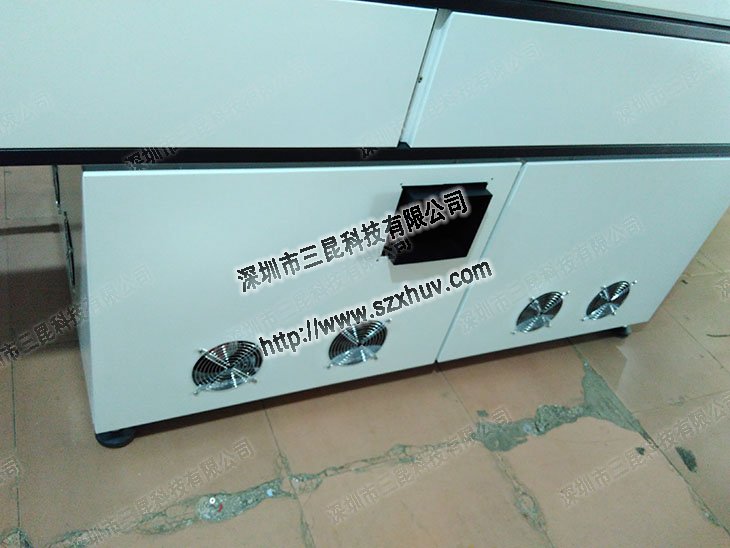

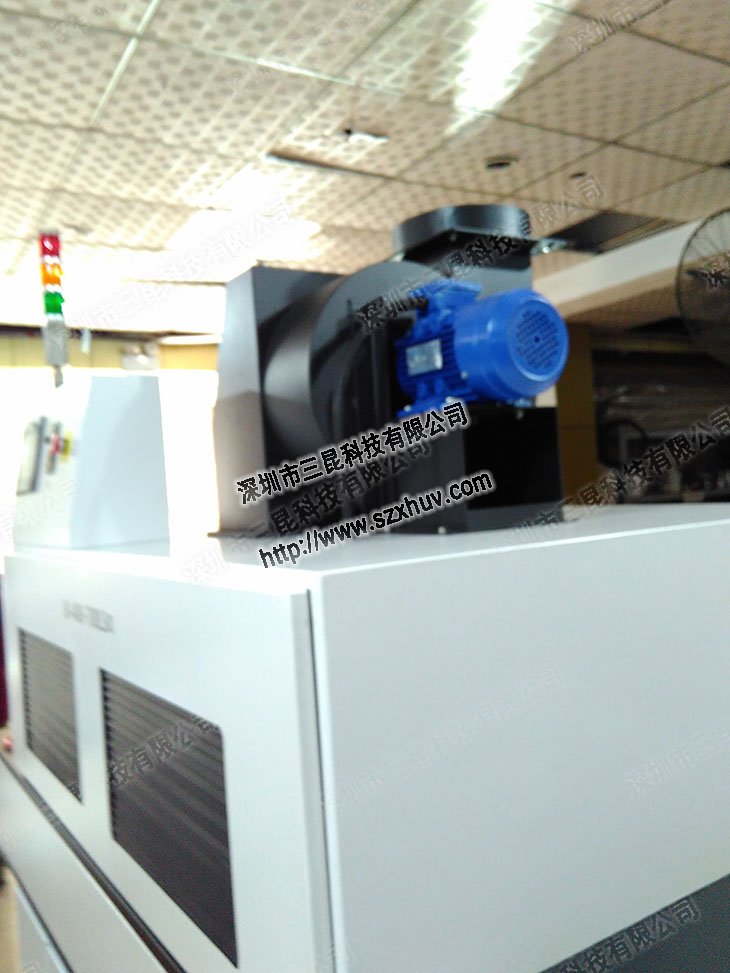

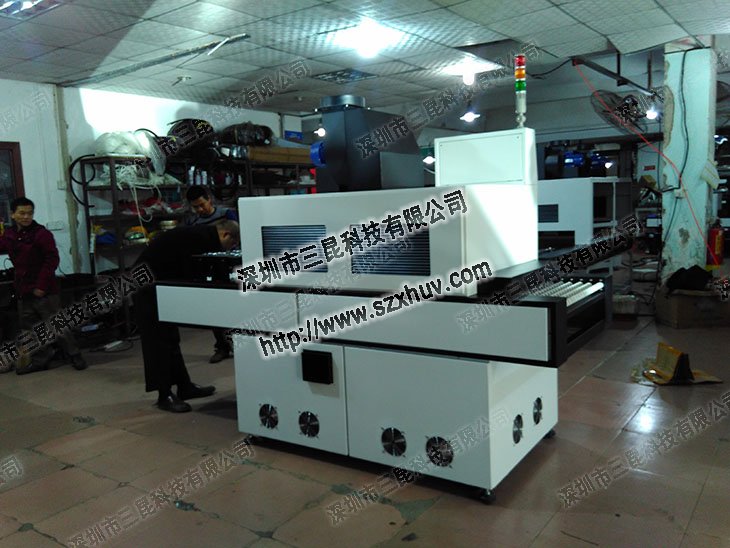

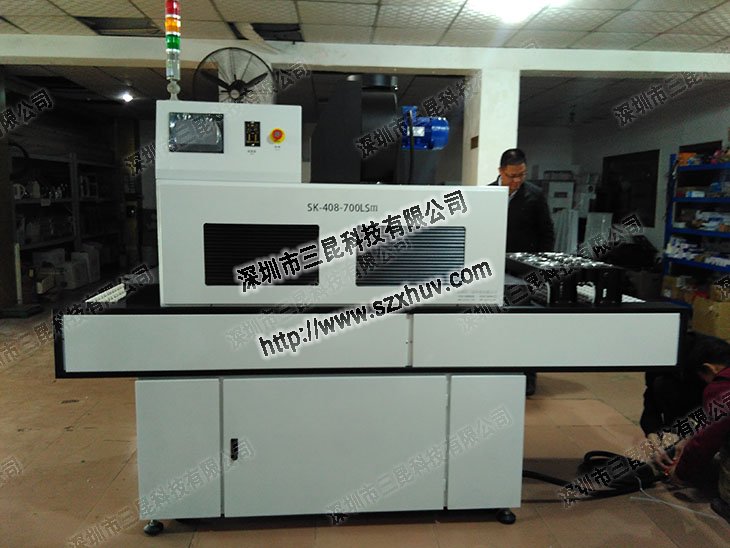

产品出货实拍图
